2-26 Chapter 2: Hardware information

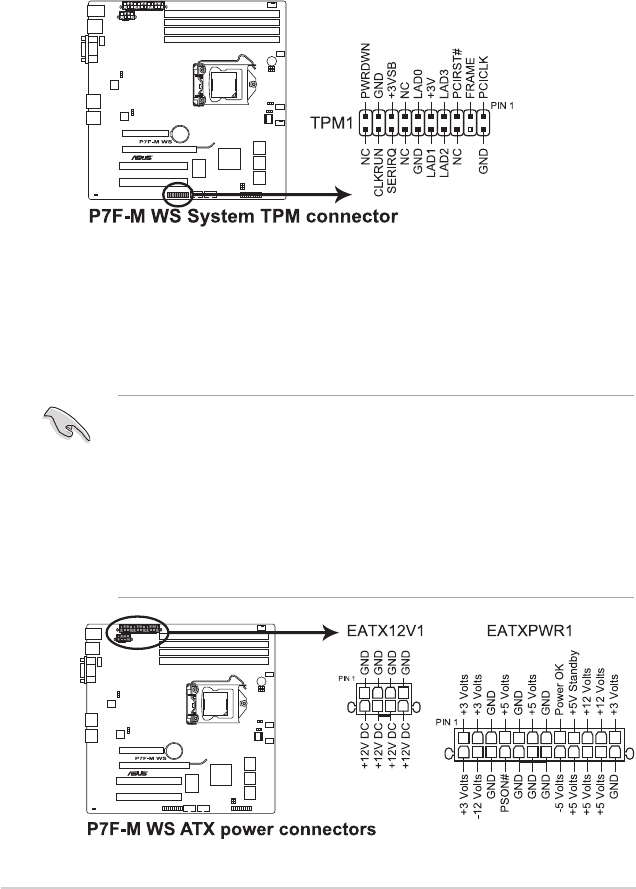

5. TPM connector (20-1 pin TPM) [Optional]

This connector supports a Trusted Platform Module (TPM) system, which can

securely store keys, digital certicates, passwords, and data. A TPM system

also helps enhance network security, protects digital identities, and ensures

platform integrity.

6. ATX power connectors (24-pin EATXPWR1, 8-pin EATX12V1)

These connectors are for an ATX power supply plugs. The power supply

plugs are designed to t these connectors in only one orientation. Find the

proper orientation and push down rmly until the connectors completely t.

• DO NOT forget to connect the 24+8-pin power plugs; otherwise, the system

will not boot up.

• Use of a PSU with a higher power output is recommended when

conguring a system with more power-consuming devices. The system

may become unstable or may not boot up if the power is inadequate.

• This motherboard supports ATX2.0 PSU or later version.

• Ensure that your power supply unit (PSU) can provide at least the minimum

power required by your system.
