2-12 Chapter 2: Hardware information

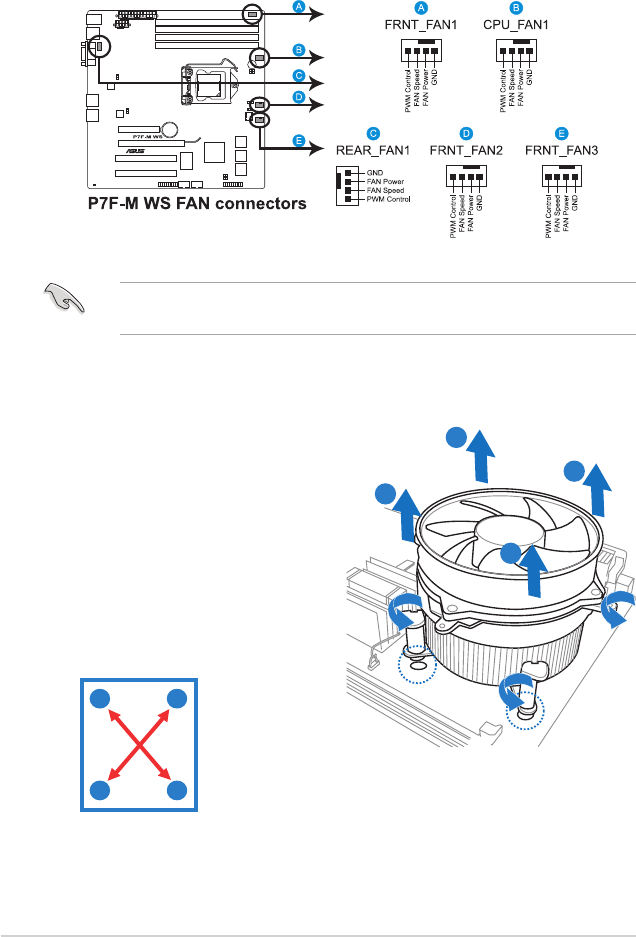

3. Connect the CPU fan cable to the connector on the motherboard labeled

CPU_FAN.

DO NOT forget to connect the CPU fan connector! Hardware monitoring errors

can occur if you fail to plug this connector.

2.3.3 Uninstalling the CPU

heatsink and fan

To uninstall the CPU heatsink and fan:

1. Disconnect the CPU fan cable from

the connector on the motherboard.

2. Rotate each fastener

counterclockwise.

3. Pull up two fasteners at a time in a

diagonal sequence to disengage the

heatsink and fan assembly from the

motherboard.

4. Carefully remove the heatsink and fan assembly from the motherboard.
